REINFORCE in Short Corridor Environment

from rlforge.environments import ShortCorridor
from rlforge.agents.policy_gradient import REINFORCEAgent
from rlforge.experiments import ExperimentRunner

import matplotlib.pyplot as plt

env = ShortCorridor(observation_type='feature')
runs = 100

agent = REINFORCEAgent(num_actions=2,
                       dims_ranges=((0.0, 1.0), (0.0, 1.0)),
                       alpha_theta=1e-3,
                       alpha_w=None,              # Baseline step size (alpha^w) - Only used if baseline=True
                       discount=0.99,
                       iht_size=1024,
                       num_tilings=2,
                       num_tiles=2,
                       wrap_dims=(False,False),
                       baseline=False)

agent_baseline = REINFORCEAgent(num_actions=2,
                                dims_ranges=((0.0, 1.0), (0.0, 1.0)),
                                alpha_theta=4e-3,
                                alpha_w=1e-2,
                                discount=0.99,
                                iht_size=1024,
                                num_tilings=2,
                                num_tiles=2,
                                wrap_dims=(False,False),
                                baseline=True)

runner = ExperimentRunner(env, agent)

results = runner.run_episodic(
    num_runs=runs,
    num_episodes=500,
    max_steps_per_episode=100
)

rewards = results["mean_rewards"]
steps = results["mean_steps"]

runner.summary(last_n=20)

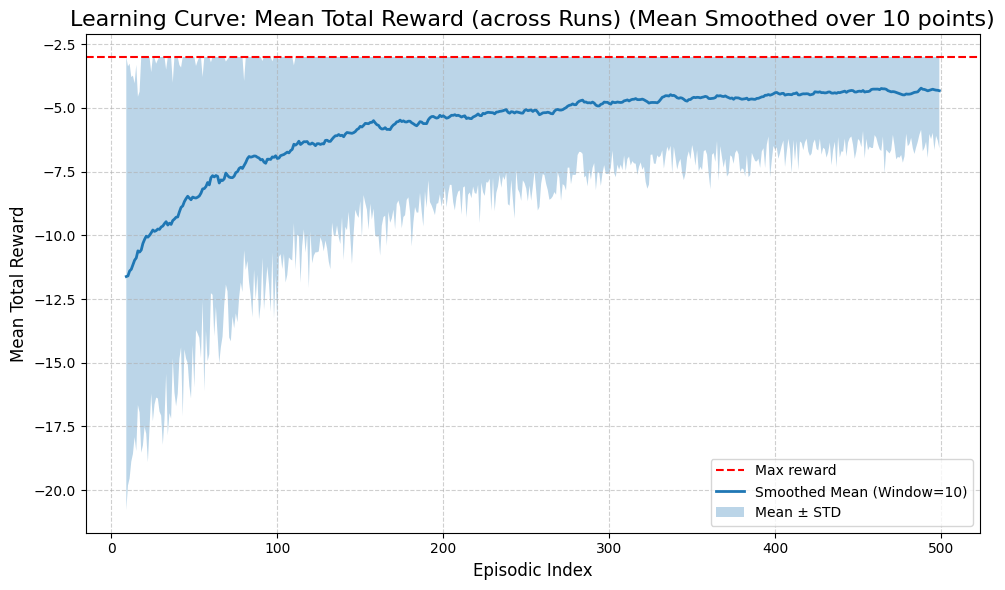

runner.plot_results(window_size=10, max_reward=-3)

============================================================
 Experiment Summary (Episodic)
============================================================
Runs: 100
Average runtime per run: 0.585 seconds
Episodes per run (Max): 500
First episode mean reward: -11.650
Last episode mean reward: -4.660
Overall mean reward: -5.720
Mean reward (last 20 episodes): -4.295
First episode mean steps: 11.7
Last episode mean steps: 4.7
Overall mean steps: 5.7
============================================================

runner_baseline = ExperimentRunner(env, agent_baseline)

results_baseline = runner_baseline.run_episodic(
    num_runs=runs,
    num_episodes=500,
    max_steps_per_episode=100
)

rewards_baseline = results_baseline["mean_rewards"]
steps_baseline = results_baseline["mean_steps"]

runner_baseline.summary(last_n=20)
runner.plot_results(window_size=10, max_reward=-3)

============================================================
 Experiment Summary (Episodic)
============================================================
Runs: 100
Average runtime per run: 0.490 seconds
Episodes per run (Max): 500
First episode mean reward: -11.630
Last episode mean reward: -3.480
Overall mean reward: -4.183
Mean reward (last 20 episodes): -3.425
First episode mean steps: 11.6
Last episode mean steps: 3.5
Overall mean steps: 4.2
============================================================

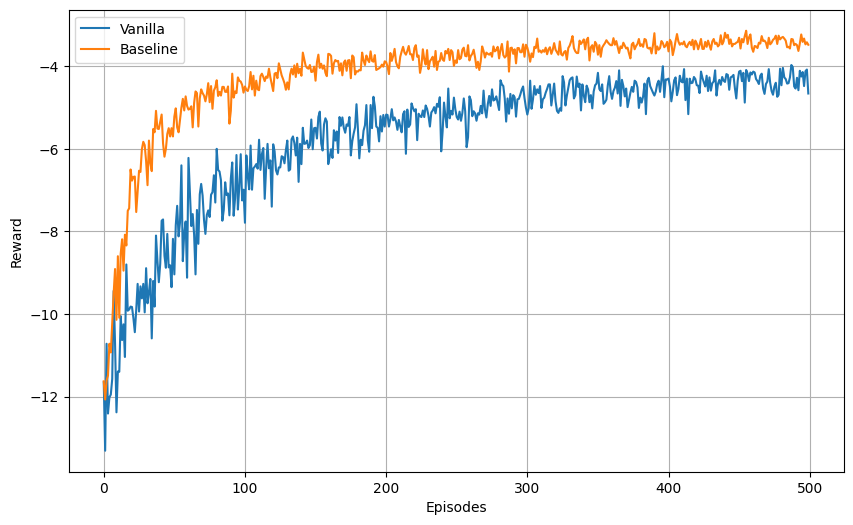

plt.figure(figsize=(10, 6))
plt.plot(rewards)
plt.plot(rewards_baseline)
plt.xlabel('Episodes')
plt.ylabel('Reward')
plt.legend(['Vanilla', 'Baseline'])
plt.grid()
